When it comes to protecting sensors in industrial applications, thermowells are a go-to solution. These protective barriers shield sensors from harsh environments like extreme temperatures, high-pressure systems, or corrosive substances, ensuring both accuracy and long-term durability of the instrumentation. By housing the sensor inside a robust sleeve, thermowells prevent direct exposure to damaging conditions, making them essential in industries such as oil and gas, chemical processing, and power generation.

However, despite their many advantages, thermowells are not without their limitations. They can sometimes introduce issues such as increased response time due to the additional thermal mass, potential vibration-induced stresses, or even damage from improper installation or design. Understanding the thermowell disadvantages allows engineers and technicians to make better design, installation, and maintenance decisions, optimizing performance while minimizing risks. This article delves into the main challenges associated with thermowells and provides actionable insights to help you address these issues effectively.

Overview: The Value of Thermowells (and Their Limitations)

Thermowells are critical components for protecting temperature sensors from harsh operating conditions such as extreme temperatures, high pressure, and corrosive environments. By encasing the sensor, thermowells ensure that the sensor remains functional and can be replaced without requiring a process shutdown, which is vital for maintaining efficiency and minimizing downtime in industrial operations. Additionally, they provide a crucial barrier that enhances the lifespan of the sensor and ensures reliable temperature measurements.

However, improper thermowell design or decisions during the planning phase can lead to the thermowell failure, which poses significant risks to plant operations. A failed thermowell can compromise the accuracy of temperature readings, lead to potential sensor damage, or even cause unplanned downtime, which can be costly in critical process environments.

The limitations of thermowells often stem from their interaction with the operating environment. Factors such as vibration-induced stress, material fatigue over time, improper sizing, and pressure loss within the system can undermine their performance. For example, excessive vibration can cause the thermowell to resonate, leading to cracks or even total failure. Similarly, inadequate material selection may result in corrosion or deformation, especially in aggressive chemical or high-temperature environments.

To optimize thermowell use and prevent such issues, it is essential to understand these potential pitfalls and address them proactively during design and implementation. Proper analysis of factors like fluid dynamics, material properties, and process conditions, combined with regular maintenance and monitoring, can significantly enhance the reliability and durability of thermowells in demanding applications.

Vibration and Wake Frequency Failures

One of the most critical issues with thermowells is thermowell vibration caused by flow-induced forces. Rapid fluid movement around the thermowell can result in oscillations, which, if left unchecked, will lead to fatigue or even catastrophic failure.

Wake Frequency and Flow-Induced Vibration Case

These vibrations are mainly driven by wake frequency, the natural oscillation frequency caused by vortex shedding behind the thermowell. When the wake frequency aligns with the thermowell's natural frequency, it creates a resonance effect. This phenomenon, known as flow-induced vibration, can amplify stresses on the thermowell. Over time, these stresses can lead to cracks or complete thermowell failure.

To mitigate this risk, engineers must carefully evaluate the operating conditions and adhere to established standards, such as ASME PTC 19.3 TW. Adjusting insertion lengths or selecting reinforced designs can help address this issue.

Pressure Loss and Fluid Flow Disruption

Other thermowell disadvantages are the impact they have on process dynamics. Installing a thermowell can disrupt fluid flow, causing additional thermowell pressure loss within the system. This disruption occurs because the thermowell acts as an obstruction in the fluid stream, which can significantly alter the flow characteristics depending on the size, shape, and placement of the thermowell.

How Pressure Loss Affects Operations

When thermowells are inserted into fluid streams, they create drag, altering the flow profile and increasing turbulence around the thermowell. This process not only leads to energy inefficiency, as more energy is required to maintain flow rates, but it can also reduce the accuracy of temperature measurements by causing fluid stagnation or inconsistent flow patterns around the sensor. Excessive pressure drops are particularly problematic in high-speed or low-pressure systems, where optimizing flow efficiency is critical to maintain overall system performance and prevent operational issues.

To address these challenges, refining thermowell design considerations such as the shape (e.g., tapered versus straight), wall thickness, and placement within the system is crucial. Proper design minimizes disruptions to the flow while still ensuring accurate temperature monitoring. Computational fluid dynamics (CFD) simulations and flow testing are often used during the design phase to predict the behavior of the thermowell in specific applications, helping engineers find the optimal balance between measurement accuracy and process efficiency.

Incorrect Material Selection

Material selection is a crucial aspect of thermowell performance. Mismatched or low-quality materials can result in thermowell material issues and contribute to industrial thermowell challenges, impacting both durability and accuracy.

Compatibility and Corrosion Risks

One common oversight is failing to match the thermowell material with the process media and environment. For example, a stainless steel thermowell exposed to chloride-rich environments may corrode prematurely. Similarly, a material unsuitable for high temperatures can degrade or warp over time. This undermines the thermowell's primary function of industrial sensor protection risks.

To avoid these risks, engineers should prioritize materials that align with their unique operating conditions. Materials like Hastelloy or titanium may provide better resistance to specific challenges but might increase costs.



Installation Limitations

Errors during installation introduce another layer of risk that can compromise both safety and performance. Improper positioning, incorrect insertion lengths, or inadequate mounting can result in thermowell installation issues and eventually lead to thermowell fatigue, which may negatively affect the entire system's reliability.

Common Installation Pitfalls

One of the most frequently observed problems is over-tightening, which places excessive strain on the thermowell threads, potentially leading to cracks and weakening the structural integrity. Another common issue is inaccurate alignment during installation, which can expose the thermowell to abnormal stress patterns. These stress points can amplify risks of vibration and fatigue, increasing the likelihood of failure over time. Additionally, failing to account for thermal expansion or process flow dynamics during installation can further exacerbate these risks, making the system vulnerable to premature wear.

To minimize these challenges, proper training for installation teams is critical. Installers must understand the key parameters affecting thermowell performance, including insertion depth, orientation, and torque limits. Regular audits and maintenance checks should also be implemented to identify and address any potential issues early, ensuring the system continues to operate safely and efficiently.

How to Prevent or Mitigate Thermowell Failures

While the problems outlined above may seem daunting, they’re not insurmountable. Following thermowell design standards, installing carefully, and performing ongoing audits will significantly lead to thermowell damage prevention. These actions can avoid failures and extend service life.


Proactive Measures for Protection

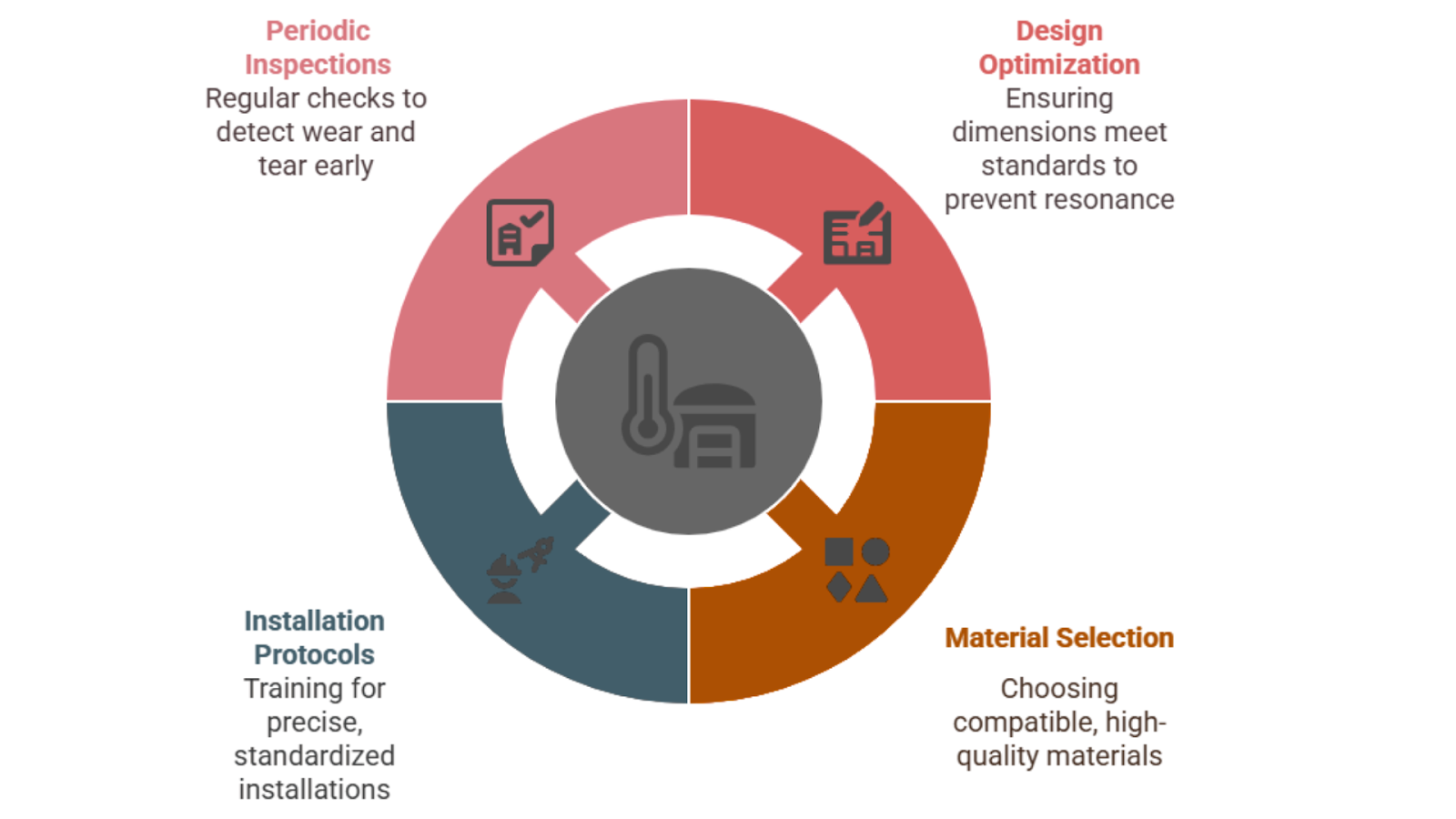

  1. Design Optimization: Ensure the thermowell's dimensions are within accepted standards to avoid resonance conditions. This includes considering the fluid’s velocity, density, and operating temperature.

  2. Material Selection: Use compatible, high-quality materials that can handle both the chemical and physical stresses of your operating environment.

  3. Installation Protocols: Train your team to execute precise, standardized installations and avoid overly aggressive tightening practices.

  4. Periodic Inspections: Regular maintenance and monitoring can detect wear and tear early, preventing unexpected failures.

Addressing these aspects not only elevates plant safety but also minimizes downtime, safeguarding productivity and operational efficiency.

By tackling thermowell challenges proactively, most issues can be effectively prevented through sound design principles and expert guidance. At ACT Sensors, we specialize in crafting high-performance custom thermowells engineered to meet the unique demands of your operations. Our team of experts combines technical precision with years of industry experience to deliver solutions that excel in challenging environments.

Avoid costly failures—consult ACT Sensors today. Ensure your thermowells are designed for unmatched safety and reliability, even in the most demanding conditions. Reach out to our team now to safeguard your operations and maintain peak performance.
