Straight vs Tapered Thermowell: Which One Is Better?

Choosing the right thermowell geometry for your industrial process is crucial, as it directly impacts the accuracy and durability of your temperature measurement system. Should you opt for a straight thermowell, valued for its robustness, ease of manufacturing, and suitability for low to moderate flow conditions, or a tapered thermowell, engineered to excel under challenging conditions such as high flow velocities and pressure? Straight thermowells are often more cost effective and ideal for processes with minimal stress. In contrast, tapered thermowells provide higher resistance to vibration and reduce drag forces, making them the preferred choice for demanding applications. This article explores the advantages, limitations, and best use cases of each design, providing the insights you need to make an informed decision for your thermowell selection.

Understanding Thermowell Geometry and Function

The thermowell design significantly impacts its durability and functionality. A thermowell’s geometry determines its ability to withstand external forces, manage thermal conductivity, and safeguard sensors.

• Straight thermowells feature a uniform diameter throughout, providing robust strength in stable or low-flow environments.

• Tapered thermowells, in contrast, gradually reduce in diameter. This shape minimizes drag and aligns more effectively with wake frequency requirements in faster flows.

By understanding this essential foundational difference, we can uncover the unique strengths and features that define each thermowell design. Whether prioritizing structural integrity or optimizing for performance, both options bring distinct advantages tailored to specific operational needs. This thoughtful analysis not only provides clarity but also emphasizes the critical factors in the straight vs tapered thermowell debate, guiding you toward the best choice for achieving reliable and efficient results.

Straight Thermowells: Strength and Simplicity

A straight thermowell has a consistent cylindrical shape, making it the go to option for static or low flow environments. Here are its key benefits:

1. Strength and durability
     Since the shape lacks any tapering, the wall thickness remains uniform, ensuring maximum strength against static pressure. This makes it ideal for environments where the flow velocity is low.

2. Ease of manufacturing
     Straight thermowells are straightforward to produce. This simplicity often translates to lower costs compared to tapered thermowells.

That said, the lack of tapering in these thermowells may limit their performance in high-velocity flow applications where vibration performance is crucial.

Tapered Thermowells: Designed for Performance

A tapered thermowell is meticulously engineered for dynamic and challenging industrial conditions. The geometry of these thermowells provides notable tapered thermowell benefits, including:

1. Enhanced response time

The reduced mass at the sensing end speeds up temperature readings, improving thermowell response time compared to straight designs.

2. Better vibration resistance

Tapered thermowells excel in high-velocity flow conditions by mitigating wake frequency effects. Their aerodynamic design not only enhances longevity but also ensures exceptional thermowell vibration performance, a critical factor in environments prone to vortex-induced vibrations.

These performance capabilities make them indispensable in critical industries such as chemical processing or oil refining, where process conditions demand reliability.

Key Performance Comparison

Strength and Durability

• Straight thermowells excel in their structural integrity, making them robust against static pressures.

• Tapered thermowells are less rigid but compensate with adaptability in high-flow environments.

Response Time and Thermal Conductivity

• The consistent structure of straight thermowells results in slower thermowell response time.

• Tapered designs, with their leaner profiles, allow for quicker heat transfer.

Vibration Behavior and Fatigue

• Straight thermowells can struggle in maintaining vibration performance under wake-induced conditions.

• Tapered thermowells, with their reduced mass and aerodynamic design, are better at managing wake frequency stresses.

Cost and Manufacturing Complexity

• Due to their simpler construction, straight thermowells are cheaper to produce.

• Tapered thermowells require precision engineering, leading to higher costs.

How to Choose Between Straight and Tapered Thermowells

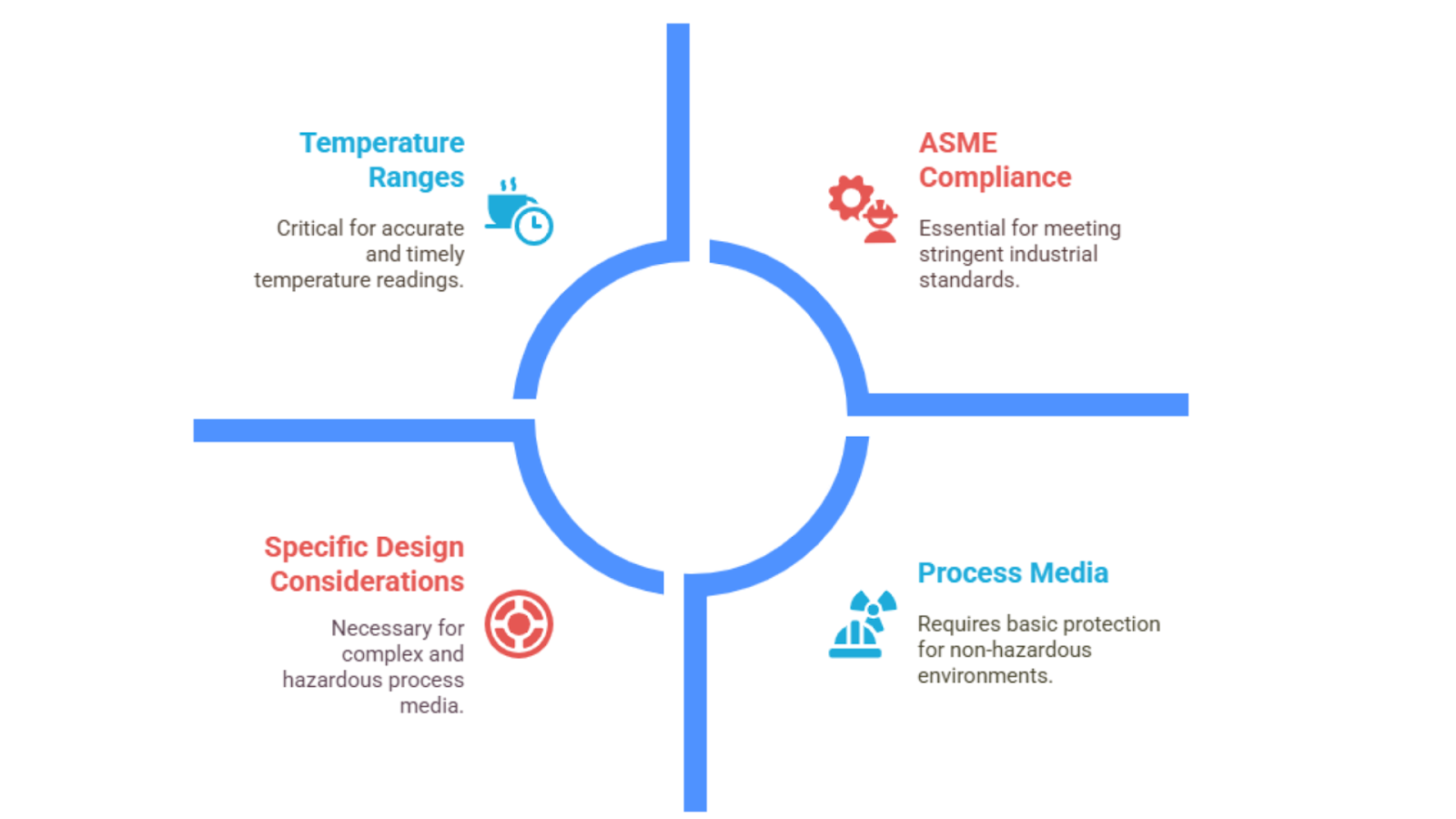

The choice between straight and tapered thermowells boils down to the demands of your specific industrial thermowell application. Here are factors to consider during your thermowell comparison:

• Flow conditions: High-velocity processes benefit from the vibration resistance of tapered thermowells.

• Temperature ranges: Tapered thermowells offer quicker thermal reaction times, crucial for critical temperature readings.

• Process media: Corrosive or hazardous mediums demand a higher standard of sensor protection, which may require specific thermowell design considerations.

• Standards compliance: Ensure your choice adheres to codes such as ASME PTC 19.3 TW, particularly for rigorous industrial applications.

Decision Table: Straight vs Tapered

Conclusion

Both straight thermowells and tapered thermowells serve specific purposes based on the application. Straight thermowells are a reliable, cost-effective option for static systems, while tapered thermowells excel in high-velocity, demanding environments where vibration resistance and faster response times are critical. Choosing the right design ensures optimal performance and system reliability. Need guidance? ACT Sensors offers expert thermowell consultations and a detailed comparison matrix to help you select the best solution for your needs.
