Capacitive Fuel Level Sensor Working Principle

In the realm of fuel management, accuracy and efficiency are paramount. Capacitive fuel level sensors have emerged as a vital technology across multiple industries, including automotive, marine, and industrial sectors. These sensors not only provide real-time data to optimize fuel use but also help prevent costly overflows. In this blog post, we'll delve into the science behind capacitive fuel level sensors, explore their advantages, and offer practical tips for their selection and maintenance.

What are Capacitive Fuel Level Sensors?

Capacitive fuel level sensors are devices that measure the level of fuel within a tank by detecting changes in capacitance. Their significance spans various industries, where they help ensure efficient fuel management and prevent overflow, contributing to both safety and cost-effectiveness.

Their operation is based on the principle of capacitance, where two conductive plates separated by a dielectric medium—in this case, the fuel—form a capacitor. As the fuel level changes, the dielectric constant alters, affecting the capacitance. This change is measured and interpreted by the sensor's electronics to provide an accurate fuel level reading. Capacitive sensors are particularly favored for their high precision, resistance to mechanical wear, and ability to operate reliably in harsh environments, making them well-suited for applications ranging from automotive fuel systems to large-scale industrial tanks.

The Science Behind Capacitive Fuel Level Sensors

At the core of these sensors lies the principle of capacitance—a system's ability to store an electric charge between two conductive surfaces. Here's how it works:

• Capacitance and Dielectric Constant: In fuel sensors, capacitance is influenced by the dielectric constant of the material between the conductive surfaces. This material alternates between air and fuel as the tank fills or empties. Since the dielectric constant of fuel is different from air, changes in fuel levels result in varying capacitance values.
• Probe Interaction: The sensor includes a probe inserted into the fuel tank. This probe forms an electric field between itself and a reference electrode, creating an electric circuit.
• Detecting and Converting Signals: As fuel level changes, so does the dielectric constant around the probe, leading to variations in capacitance. The sensor then converts these changes into readable signals, providing accurate measurements of fuel levels.

To aid understanding, visual diagrams or illustrations can be immensely helpful. Imagine a simple setup where the probe and electrode create an electric field, with the fuel acting as the medium whose level changes influence the field's behavior.

Further understanding of capacitive sensors involves examining their inherent design advantages, making them a preferred choice for precise fuel level measurement under various conditions. The construction of these sensors allows for robust performance in challenging environments, where factors like temperature fluctuations, vibrations, and potential corrosion could impair other sensor types.

• Adaptability to Different Liquids: Capacitive sensors can be calibrated for different types of fuel or liquids, adjusting the sensor’s sensitivity according to the dielectric constants of varying media. This flexibility is essential for industries using a diverse range of fluids.
• Non-Contact Measurement: As capacitive sensors primarily rely on electrical fields, there is minimal mechanical contact with the fuel, reducing wear and prolonging the sensor's lifespan. This non-contact approach also minimizes the risk of sensor contamination or damage by aggressive chemical compositions.
• Real-time Monitoring and Alerts: Advanced capacitive sensors come equipped with real-time monitoring capabilities, enabling instant data transmission to connected systems. This functionality can be integrated with automated control systems for dynamic fuel management, reducing waste and improving operational efficiency.

Overall, the intricate science that governs capacitive fuel level sensors ensures precise, reliable, and safe fuel measurement across a multitude of applications. Understanding these operational principles allows users to better leverage the technology for enhanced fuel management strategies.

Advantages of Capacitive Fuel Level Sensors

Capacitive sensors offer several distinct advantages over other types of fuel-level sensors:

• High Precision: They provide extremely accurate readings, crucial for precise fuel management.
• Durability: With minimal moving parts, these sensors are less prone to wear and tear, enhancing their longevity.
• Versatility: Capable of working with various fuel types and adaptable to different tank shapes, they offer flexibility across applications.
• Temperature Stability: These sensors maintain accuracy across a wide range of temperatures, making them suitable for both cold and hot environment applications.
• Ease of Calibration: Capacitive sensors can be easily calibrated to account for different fuel types and tank configurations, enabling rapid adaptability to diverse operational needs.
• Reduced Maintenance Costs: Due to their non-contact measuring approach, capacitive sensors often require less maintenance, reducing long-term operational costs.
• Resilience to Contamination: The non-contact nature also means they are less susceptible to issues arising from fuel contamination or sediment build-up.

Applications and Industry Trends

Capacitive fuel level sensors find applications across diverse settings:

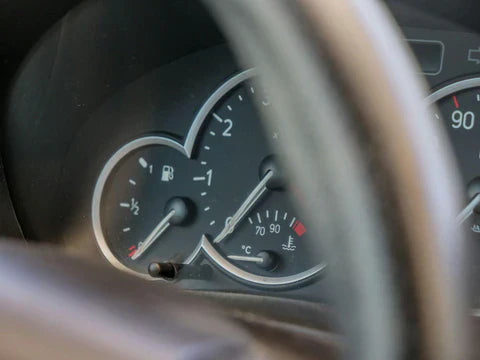

• Automotive: Used in vehicles to monitor fuel levels and enhance fuel efficiency.
• Marine: Essential for managing fuel in boats and ships, ensuring safe and efficient operations.
• Industrial: Employed in generators and large equipment to maintain adequate fuel supply.
• Agriculture: Utilized in farming machinery to monitor fuel usage, optimizing field work and reducing downtime.
• Aviation: Employed in aircraft to ensure precise fuel measurement, critical for flight safety and efficiency.
• Oil and Gas: Integral in monitoring storage tanks, providing real-time data to manage inventory and detect leaks.
• Remote Monitoring: Used in conjunction with telemetry systems to provide accurate fuel level readings in isolated or hard-to-reach locations.
• Emergency Services: Implemented in vehicles such as ambulances and fire trucks to guarantee reliable fuel status and readiness for deployment.

The industry is witnessing trends towards smarter, more integrated systems, with sensors increasingly being incorporated into IoT networks for enhanced data analysis and management.

Practical Considerations for Selecting and Maintaining Capacitive Fuel Level Sensors

When maintaining a capacitive fuel level sensor, consider the following:

• Regular Calibration: Periodic calibration is essential to ensure accuracy, especially when dealing with different types of fuels or during environmental changes. Calibration accounts for variations in the dielectric constants of different fuels, ensuring that the sensor remains precise in its measurements. New calibration standards and protocols are being developed to further enhance sensor performance.
• Inspection for Buildup: Regularly inspect the probe for any sediment or residue that might impact sensor performance. Continuous operation can lead to deposits that form on the sensor, impacting the electrical field necessary for measurement. Implementing a scheduled cleaning routine can avert potential inaccuracies.
• Protection of Electronics: Ensure that the sensor’s electronics are shielded from harsh environmental conditions, such as extreme temperatures or moisture. Use protective casings and coatings to defend against environmental hazards, thereby extending the lifespan of the sensor's electronic components.
• Check for Corrosion: Examine components for any signs of corrosion, and address issues promptly to prevent sensor failure. Corrosion can compromise sensor integrity and lead to unreliable performance. Incorporating corrosion-resistant materials and regular maintenance can mitigate these risks.
• Firmware Updates: Keep the sensor’s software updated to benefit from the latest advancements and improvements. Manufacturers often release updates that enhance sensor functionality and compatibility with newer systems. Enabling automatic updates can streamline this process.
• Signal Testing: Routinely test the sensor's signal strength and data transmission to ensure reliable operation. Assess the signal output against known standards to detect deviations early. A robust diagnostic routine can significantly increase operational confidence.
• Connection Integrity: Check all connections and wiring for signs of wear or damage, maintaining optimal sensor function. Loose or compromised connections can lead to incorrect readings. Regular audits of wiring and connection points can prevent potential failures and maintain operational integrity.

Conclusion

Capacitive fuel level sensors have become a cornerstone of modern fuel management systems due to their exceptional precision and adaptability. Their versatility across different fuel types, temperature ranges, and applications makes them an invaluable asset. By focusing on regular maintenance and adapting to new technological advancements, industries can harness their full potential to enhance operational efficiency and safety. Ensuring compatibility with evolving digital systems and undertaking routine inspections will optimize sensor performance, meeting the diverse and dynamic demands of various industries. As technology advances, embracing these robust sensors will continue to drive innovation and reliability in fuel management.
