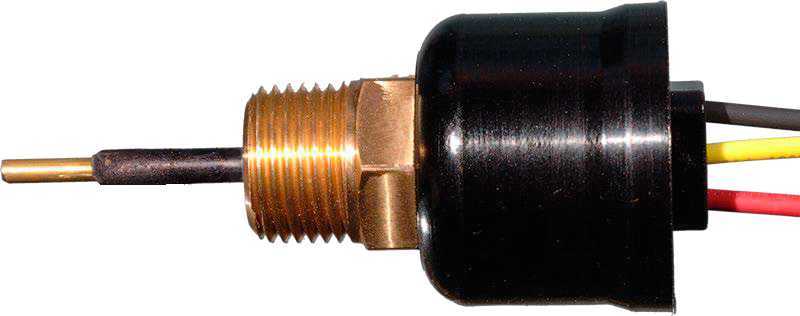

ELC-3B series
by ACTSENSORS
Description:
Low level engine coolant detection or other
conductive fluids in radiators or heat exchangers.
All solid state control is self contained, will turn
on an alarm light or shut off equipment.
Time delay output compensates for fluid surges.
Features:
- 8-10 second delayed output
- Small body
- Sealed housing to 50 psi
- SPST-N.O. relay, grounds output
- Indicator light shows coolant presence
Options:
- Mounting thread 1/4”, 3/8” & 1/2” NPT
- Custom mounting threads
- Time delay changes
- Various connectors
- Output signals: SPDT relay, Voltage and Open collector
- A.C.T. will modify controls to provide the
best solution for your application.
Specifications:
- Mounting threads 1/4” npt typical
- Set point hysteresis 2 %
- Temperature range -32OF to 250OF
