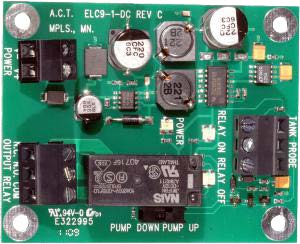

ELC-9-DC series

Description:
Control liquid levels in up to four tanks with
a single control. Probes set at high and
low control points detect conductive liquids
and cycle the output relay between these
probes. Pump Up (filling) or Pump Down
(emptying) independently selectable for each
tank. Control up to eight (8) levels in a single
tank.

Features:
- 100,000 ohms conductivity range
- DC powered wide voltage input 12-24 VDC
- Terminal block connections
- Single, Double or Multi-Tank Controller
- AC probe voltage prevents lost signals
- SPDT output relay(s)
- Control functions field selectable, Pump
up or pump down

Options:
- Stainless steel probes
- Multiple probe, pipe plugs
- Power relays
- Snap track mounting hardware
- A.C.T. will modify controls to provide
the best solution for your application.

Specifications:
- Media Water based fluids
- Probe Voltage 6 VAC
- Relay contacts 10 amps. SPDT
- Sensitivity 100,000 ohms
- Snap Track ELC-91-DC-TK, ELC-92-DC-TK and ELC-94-DC-TK
