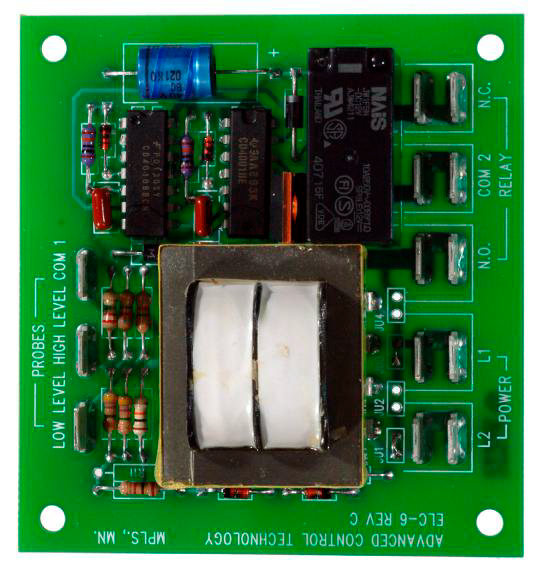

ELC-6 series

Description:
Automatic Filling control will fill a tank by cycling
the output relay between the Hi and Lo probes.
Ultra pure liquids like d-ionized water can be
detected.

Features:
- 5 million ohms conductivity range
- Double power connections
- Dual voltage transformer 120/240 VAC, 50-60 Hz
- Intrinsically safe probe voltage and current
- Power to load is incorporated into board

Options:
- 24 VAC input power
- Stainless steel probes
- Multiple probe assemblies, pipe plugs
- Power relays
- Snap track mounting hardware
- A.C.T. will modify controls to provide the
best solution for your application.

Specifications:
- Board size 3.2” by .3”
- Set point hysteresis 3%
- Temperature range 32OF to 180OF
- Supply voltage 120 or 240 VAC
- Relay contacts 10 amps. SPDT
- Power consumption 3 watts
- Probe voltage 3 VAC
- Probe current 10 micro amps.

Ordering Information:
- Part number: ELC-6-GR10Q and ELC-6-TK
