Conductivity Probes

Description:
Conductivity probes work with water-based liquids and our open-style control boards, ELC-1, ELC-6, ELC-7, and ELC-9

Options:
- Plastic probe insulation can be added to reduce material buildup on probes.
- The high-temperature probe "HH" must have probe length and grade specified for the complete part.
- Standard probe materials are 304 or 316 stainless steel with others available.
- Suspended probes can have any length of cable or jacket material.
- A.C.T. will modify controls to provide the best solution for your application.

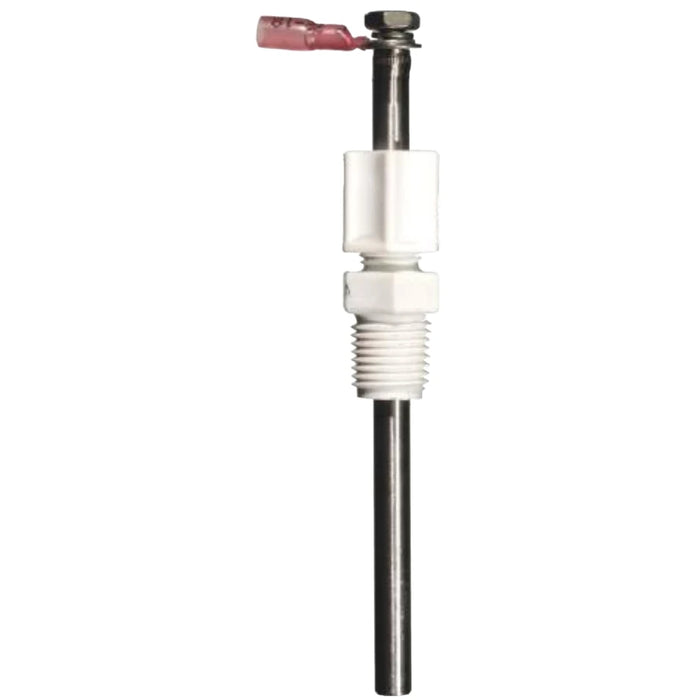

Economy Probe:
- 8-32 Stud, nut & washer
- Ring terminal
- Adjustable insertion depth
- Polypropylene insulator
- 1/4" solid stainless steel probe
- Probe lengths up to 144"
- Temperature 215°F @ zero psi
- Pressure 220psi @ 75°F

High Temperature Probe:
- 250 psi, 400°F steam
- Ceramic insulator
- Extension probes screw into bottom
- 1/4" solid stainless steel extensions
- Probe lengths up to 144"

Suspended Probe:
- Adjustable insertion depth
- Any cable length
- Plastic electrical insulator
- 304 stainless steel probe
- 1" solid stainless steel probe

Multiple Probes:
- Pipe plugs
- Flanges
- Incorporate any single probe
- Up to 4 probes

Multiple Probe Centering Disc:
- Keep multiple probes aligned
- Keep probes away from the tank
- Centers probes in standpipes
- Plastic disc material

Probe Extensions:
- Join probes together
- Low head clearance
- Extra long probes
- Lower shipping cost

Probe Junction Box:
- 2" NPT pipe plug
-Up to 3 probes
